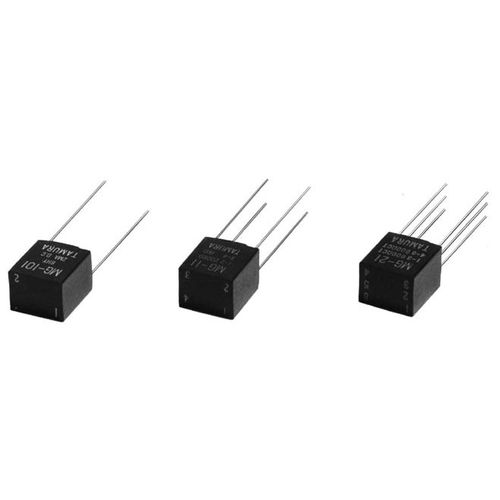

Frequency transformer MG serieselectrical power supplyencapsulatedaudio
Add to favorites
Compare this product
Characteristics
- Type
- electrical power supply
- Configuration
- encapsulated
- Applications
- audio
- Mounting
- for printed circuit boards
- Other characteristics
- compact, frequency
- Primary voltage
3.1 V, 5.4 V
- Primary current
0.05 A, 0.08 A
Description
This product is an ultra compact audio frequency transformer for use on a printed circuit board. It is packed in a self-extinguishing plasitic case, and the size is very compact., but as it uses the DL core developed by us, its electric characteristics is very excellent.
• Dielectric strength: AC500Vr.m.s. 1minute
• Insulation resistance: DC250V 100MΩ MIN.
• Frequency range: 100Hz~100kHz, ±3dB
• Minimum ordering quantity: 10pcs
