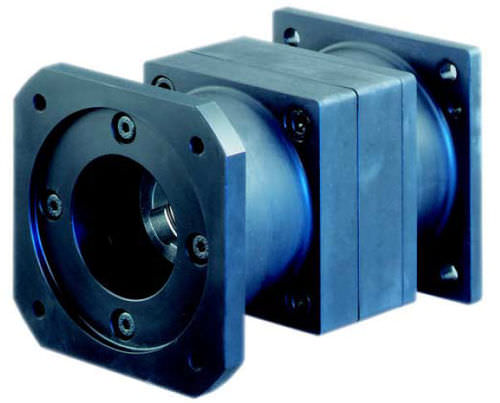

Planetary servo-gearbox PL2 FS seriescoaxialhigh-performancefor shaft
Add to favorites
Compare this product
Characteristics
- Type
- planetary
- Shaft orientation
- coaxial
- Performance
- high-performance
- Applications
- for shaft
- Rotational speed
Min.: 3,000 rpm
(18,849.56 rad.min-1)Max.: 6,000 rpm
(37,699.11 rad.min-1)
Description
ServoFoxx planetary gearbox with up to three stages
All bold-marked, "preferred gearboxes", sized 00 - A1 may be delivered quicker than other gearboxes.
Please ask!
Ratios with input at shaft d1
i=n1:n2 =
- 1-stage:
3:1; 4:1; 5:1; 6:1; 7:1; 8:1; 9:1; 10:1
- 2-stage:
15:1; 20:1; 25:1; 30:1; 35:1; 40:1; 50:1; 60:1; 80:1; 100:1
- 3-stage:
up to 1000:1
9 gearbox sizes
Max. torque 1600 Nm
Nominal speed 3000 min-1 (4500 min-1 - 6000 min-1)
Motor shafts from 5 up to 42 mm diameter
Gearbox output shaft diameter can be varied
Coaxial input and output
