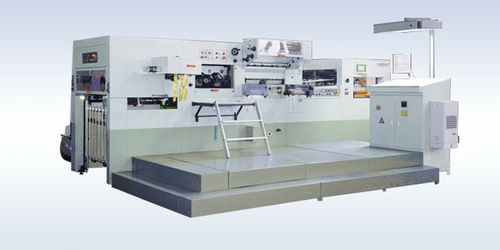

Die cutting machine HT1050T

labelsheetautomatic

HT1050T Automatic Foil Stamping and Die-cutting Machine Features： ●Automatic foil stamping and die cutting machine is mainly used for the die cutting, creasing, foil stamping, cold and hot embossing of cigarette box, drug box, wine box and label in the packing and decorating industries. ●This kind of machine is a new generation of foil stamping series on the basis of M1020, its incorporated with fully automatic feeding, die cutting, stamping, delivering foil, delivering sheet, up-press, down-press, leap step, counting, heating, pre-heating, obstacle indicating, checking and measuring. It has the features of easy operating, reliability, high speed, press and precision. Specifications： Max. Sheet Feeding Size - 1050×750mm Min. Sheet Feeding Size - 400×350mm Max. Die-cutting Size - 1040×740mm Max. Foil Stamping Size - 1020×710mm Thickness of Material - 0.1-1.5forcardboardmm ≤4for Corrugated papermm ≤1.5forPVCmm Max. Pressure - 3000KN Highest Speed for Die-cutting - 7000s/h Highest Speed for foil stamping - 6500s/h Die-cutting Accuracy - ±0.09mm Foil Stamping Accuracy - ±0.01mm Gripper Range - 7-14mm Number of axis for Feeding Foil - 3（Longitudinal）+2(Horizontal) Heating zone - 16 Temperature - 50-199℃ Max. Feeding pile Height - 1480mm Max. Delivery Pile Height - 1180mm Dimensions - 5970×4545×2230mm Weight - 17T
