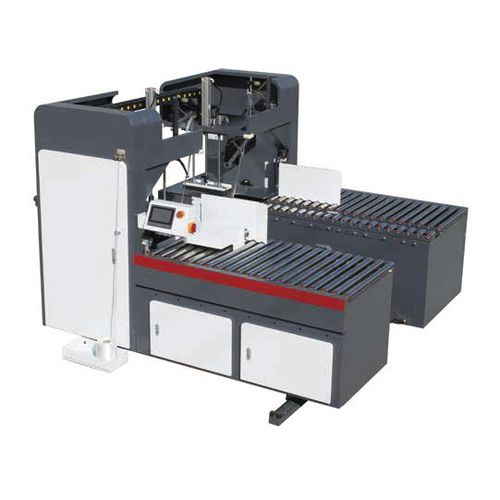

Bundling machine JDT-1000A

JDT-1000A Automatic Twin-head Bundling Machine I. Introduction JDT1000 automatic bundling machine simple type is the last process of carton packing, it can be connected with automatic folder gluer to bundle the paper pile automatically. This machine can save labor and increase production yield effectively. II. Main Features l The machine is developed on the basis of the belt type bundling machine, equipped with semi-automatic bundling machine knot head, easy operation, no need training special operators. l Knotting tidy and tight, the head under 72 hours test run before delivery which is ensuring the quality and stability, make the knot failure rate lower than 2‰ l Beak using Chromium-molybdenum alloy processed by a special CNC procedure makes it anti-wear and knot tidy. IV. Specification Carton Range A.B.C.AB. 3& 5 corrugated carton Max. Bundle Size(L*W*H) 1300*1000*280mm Min. Bundle Size(L*W*H) 450*300*50mm Bundle Speed 10-15 pile/min Total Power 2.6KW Air Source 0.8Mpa Power Supply 3~380V 50Hz Machine Parameter 3000*2800*2200mm Machine Weight 2500kg PE Rope Size 28# Installation Area 3000*2800mm
