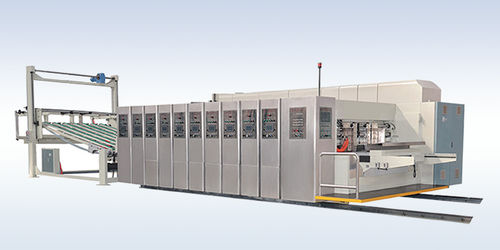

Knife cutting machine YKW1224

diefor papergrinding

YKW1224 High Speed Flexo Ink Printing Slotting Die Cutting Machine Function： ●Adopt America SUN automatic group lead edge feeding paper system and colorful master single scraping knife system ●Adopt computer control to storage order,changing order operation is convenient and quick. The machine adopts PLC touching screen to control, convenient and reliable. ●All transmission gears and rollers adopt high quality steel with heat treatment(or hard chromed)and fine grinding. ●Each unit of the machine keep ringing during traveling,each unit install emergency switch to ensure workers safty when enter into machine to operate machine. ●Oil automatic balancing device. ●Automatically zero and adjust edition,wipe edition memory function. ●Automatically zero and adjust edition,wipe edition memory function. ●All gaps adjustment adopt self-locking mechanism,the adjustment is more convenient,accurate and reliable. ●The machine adopts standard design,all the edition,mould,consumable,easy broken parts,standard components adopt international standard,it is easy to purchase. Specifications： Parameter name - YKW1200×2400 Design Speed - 260Pieces/min Maximum Size of Feeding Paper - 1200×2400mm Minimum Size of Feeding Paper - 300×600mm Feeding Paper by Partition - 1500×2400mm Maximum Size of Printing Area - 1200×2360mm Precision of Printing - ±0.5mm Thickness of Standard Printing Plank - 7.2mm Thickness of Printing Paperboard - 2-11mm Slotting Precision - ±1mm Maximum Grooving Space - 130mm Maximum Depth of Slotting - 300mm Printing Roller Axle Circular Regulating - 360°Degree
