Potable water pipe

steelplasticcomposite

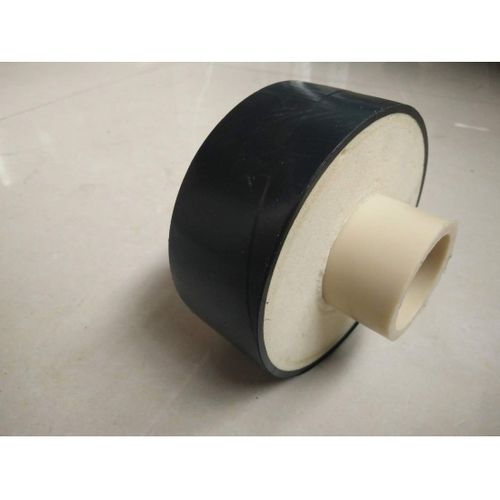

Composite plastic pre-insulated pipe manufacture Product structure ①Plastic Service pipe ②Polyurethane foamed-plastics ③Polyethylene casing pipe Application range The thermal insulation pipe is practical for domestic hot water delivery system with working pressure no higher than 1.0mpa insulation pipe is used in domestic hot water transportation system whose working temperature is not higher than 100 ℃. The working temperature of PP-R working tube is not higher than 80 ℃, and the maximum working temperature is not higher than 90 ℃. The working temperature of PVC-C working tube is not higher than 70 ℃, and the maximum working temperature is not higher than 80 ℃. The working temperature of PE-RT working tube is not higher than 80 ℃, and the maximum working temperature is not higher than 90 ℃. Laying mode: mainly used for direct buried, can be used for overhead pipelines. Service pipe the working pipe is polypropylene(PP-R) the working pipe is chlorinated polyvinyl chloride(PVC-C) the working pipe is heat resistant polyethylene(PE-RT) Standard GB/T 18742.1-2002 GB/T 18993.2-2003 GB/T 28799.2-2012 Product advantages In the heat preservation pipe industry, plastic instead of steel has become a reality in the field of heating secondary pipe network transportation.
