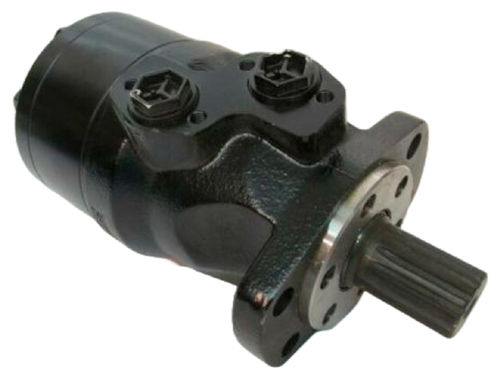

Orbital hydraulic motor MH seriesindustrialflange-mount
Add to favorites
Compare this product
Characteristics
- Technology
- orbital
- Other characteristics
- industrial, flange-mount
- Pressure
Max.: 225 bar
(3,263 psi)Min.: 125 bar
(1,813 psi)- Rotational speed
Max.: 439 rpm
(2,758.32 rad.min-1)Min.: 155 rpm
(973.89 rad.min-1)- Torque
Max.: 1,170 Nm
(862.95 ft.lb)Min.: 510 Nm
(376.16 ft.lb)- Displacement
Max.: 500 cm³
(16.91 US fl oz)Min.: 200 cm³
(6.76 US fl oz)
Description
MH series motor adapt the advanced Geroler gear set design with shaft distribution flow, which can automatically compensate in operating with high pressure, provide reliable and smooth operation, high efficiency, and long life.
Characteristic features:
*Advanced manufacturing devices for the Gerolor gear set, which use low pressure of start-up, provide smooth, reliable operation and high efficiency.
*Shaft seal can bear high pressure of back and the motor can be used in parallel or series.
*Special design in the driver-linker and prolong operating life.
*Special design for distribution system can meet the requirement of low noise of unit.
*Compact volume and easy installation.
