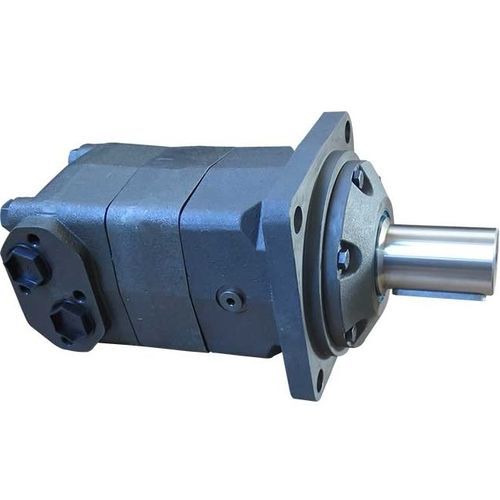

Orbital hydraulic motor MV 630

fixed-displacementindustrialhigh-pressure

APPLICATION Conveyors Metal working machines Road building machines Mining machinery Food industries Agricultural machines Special vehicles etc Plastic and rubber machinery etc. DISTRIBUTOR VALVE MV/W series motors have disk valve: the distributor valve has been separated from output shaft and is driven by short cardan shaft. A balance plate counterbalances the hydraulic forces around the distributor valve. It gives the motors high efficiency- even at high pressures, and good starting characteristics. GEAR WHEELSET There are two forms of gear wheel set: Gerotor set has plain teeth and Gerolor set with teeth fitted with rollers. MV/W series motors have Geroler set. The rollers reduce local stress and the tangential reaction forces on the rotor reducing friction to a minimum. This gives long operating life and better efficiency even at continuous high pressures. - Advanced manufacturing devices for the Geroler gear set, which use low pressure of start-up, provide smooth and reliable operation and high efficiency. - The output shaft adapts in tapered roller bearings that permit high axial and radial forces. The case can offer capacities of high pressure and high torque in the wide of applications. - Advanced design in disc distribution flow, which can automatically compensate in operating with high volume efficiency and long life, provide smooth and reliable operation. - The new series motor is suitable for vehicles with greater loads and pressure drop.
