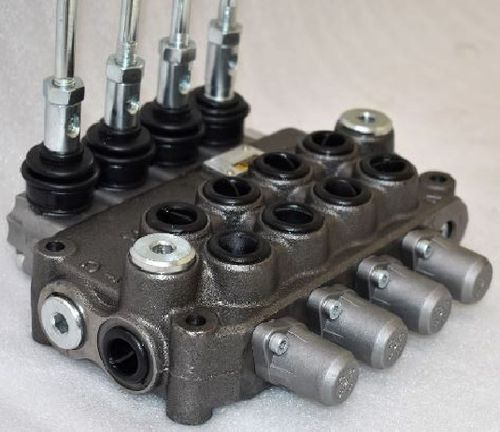

Spool hydraulic directional control valve 90L-GM10/3mechanically-operatedmonobloc
Add to favorites
Compare this product
Characteristics
- Type
- spool
- Actuating method
- mechanically-operated
- Other characteristics
- monobloc
- Operating pressure
315 bar
(4,569 psi)- Flow rate
90 l/min
(24 us gal/min)
Description
Double acting in all sections. Function can be changed.
General data
Connections: 1/2", T = 3/4"
Oil viscosity: 12 - 400 mm2 / s
Temperature range: -40°C / +60°C
Max. impurities according to iSO 4406 - class 19/16
