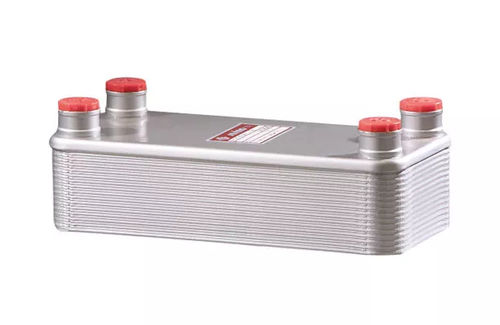

Oil cooler M18-40

for water treatmentcompactstainless steel

The heat exchanger with brazed plates consists of pressed stainless steel pla­tes, which are brazed with copper alloy during a vacuum process. During the brazing process, the plates are packed by turning them to 180° one to each other in order to create two separate flow chambers, where the fluids, which must exchange heat, flow in opposite directions. TECHNICAL SPECIFICATIONS OF USE: • Hot fluid inlet max. temperature: 225°C • Cold fluid inlet min. temperature: -160°C Operating fluids: -Mineral oil -Synthetic oil -Emulsified water -Water - Ethylene glycol ADVANTAGES: • Compact and light unit • High thermic exchange coefficient thanks to the particular structure of the plates • High working temperature and pressure • High corrosion strength (the plates are made of stainless steel) • Simple installation and repair; it does not need maintenance
