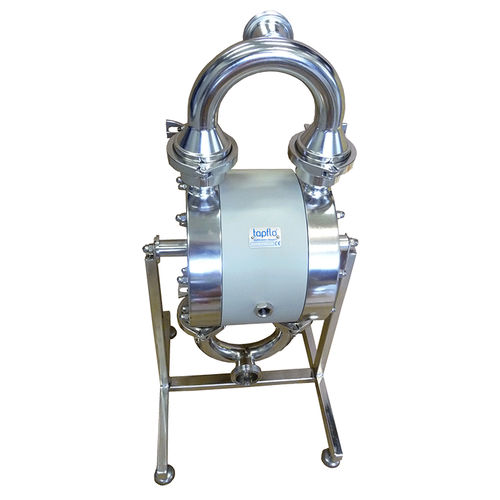

Double-diaphragm pump TX244

for chemicalsair-drivenself-priming

TX244 Tapflo TX244 is a 2 1/2" Aseptic pump, designed for service in pharmaceutic-, biotech- and food industries where a clean process is the key. Max capacity is 330 l/min. Tapflo Aseptic series is EHEDG certified, has FDA approved materials and conform to the ATEX directive 2014/34/EC. Features & Benefits No bacteria growth no horizontal areas inside the pump Easy cleaning and draining designed for CIP and SIP cleaning Gentle pumping no damage of sensitive products Wide range of connection types TriClamp, sanitary threads (DIN, SMS) etc. Hygienic surfaces housings made from electro polished stainless steel AISI 316L, Ra < 0.8 (standard) or Ra < 0.5 (on request) No leakage no rotating shaft seals Flexible installation self-priming Reliable in service can run dry and against closed valve without damage Environmental friendly lube free air valve Hygienic diaphragms designed without any nuts or plates on the pumped side
