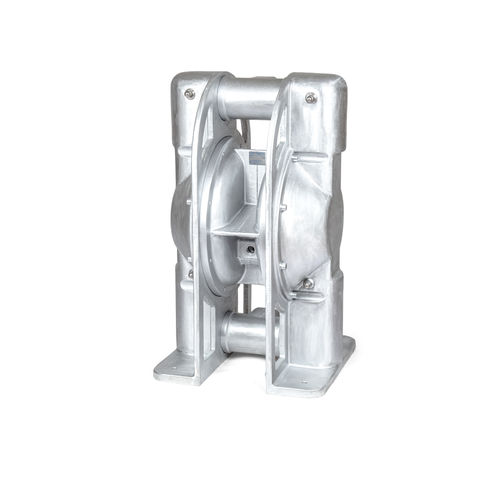

Double-diaphragm pump T820

waterfor chemicalsoil

Type: - T 820 Atex/FDA: - TX 820 (ATEX) Material: - Aluminium, AISI 316 m3/h; l/min: - a max capacity of 820 l/min. Spheres to use: - • - Workshop: Oil, fat, solvents, water, cooling fluid, lubricants • - Print & paint: Glue, additives, varnish, ink, paint, latex, acid, resins, pigments • - Mining & construction: Adhesives, sump, dewatering, coal sludge, pastes • - Ceramic industry: Abrasives, glaze, water, enamels, clay • - Chemistry: Acids, alkalis, alcohol, solvents, latex, emulsions Possible sizes: - T25, T70, T120, T220, T420, T820 Temperature max: - +110 C Pressure: - 8 bar Description: - Aluminium and cast iron pumps For transfer of pH-neutral fluids, both thin, thick, high solid content or abrasive. The aluminium and cast iron pumps are found in most fields; workshop and paint industries, purifying plants etc., to mention only a few. AISI 316 stainless steel pumps Made in lost wax cast method, ensuring great accuracy and finish. The stainless steel pumps combine great mechanical strength with good chemical features. AISI 316 is resistant to aggressive liquids like nitric acid and sodium hydroxide. The centre block, which is not in contact with liquid, is made from corrosive resistant polypropylene (PP) as standard (other materials upon request). Motor, kW - No motor in construction Dimensions: depends of material
