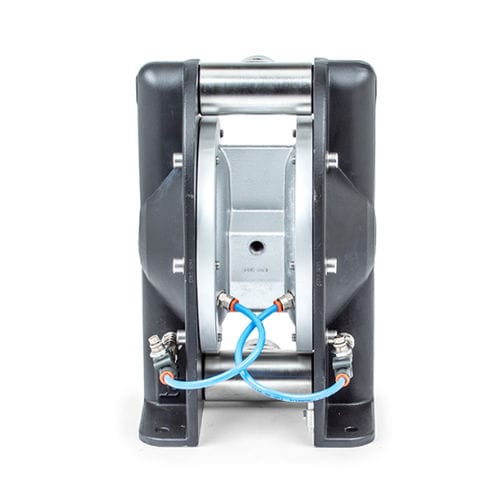

Double-diaphragm pump TXP420

paintfor adhesivesfor bases

Type: - TXP 420 Material: - PTFE coated aluminium Spheres to use: - • - Economical compared with other complex powder systems • - Convenient and safer than manual powder handling Possible sizes: - TXP120, TXP220, TXP420 Temperature max: - +110 C Pressure: - 8 bar Description: - TXP420 is the biggest pump in the range of powder transfer pumps with a max capacity of approx 30 kg/min. Reduced contamination The powder is transferred in a hermetic system from the powder container to your process. Economical and compact solution The Tapflo powder transfer pump can do the same job as many complex and large powder systems. The compact design also makes the unit portable. What kind of powders? The powder transfer pump will handle different types of process powders, with specific weight from 80 up to 720 kg/m3 dry weight. Generally, if the powder does not clump together when squeezed in hand, the Tapflo powder transfer pump can be used successfully. A few examples of common powders are sintering powder, carbon black, resins and silicones. Capacity The capacity of the powder transfer is extremely different from one powder to another, depending on the consistency and weight etc. Motor, kW - No motor in construction
