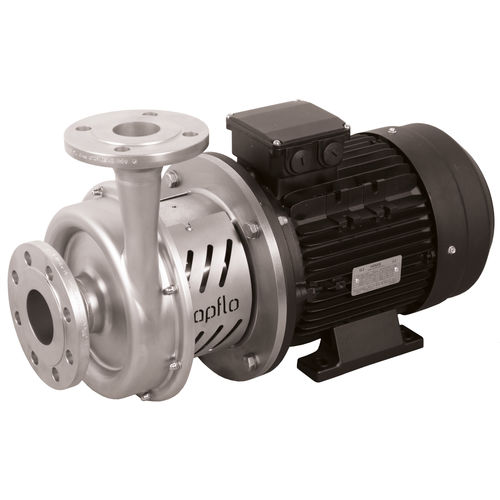

Impeller pump CTX I

for chemicalsfor lubricantswith electric motor

Materials, data and limits Casing - Stainless steel AISI 316L glassblasted Ra<3.2 Impeller - Stainless steel AISI 316L electropolished Ra<3.2 Mechanical seal - Single, SiC/carbon (std) or SiC/SiC, FDA approved Double, SiC/carbon (std) or SiC/SiC, FDA approved O-rings - EPDM, FKM, NBR (all FDA approved) Motor - IP55; IEC frame B35; PTC thermistor; IE3; 3-phase Pressure rating @ 20OC - PN10 – CTX 40-165, CTX 50-145, CTX 50-200, CTX 65-175 PN16 – CTX 65-230, CTX 65-240, CTX 80-205, CTX 80-212 Liquid temp. - (-10 OC) ... +120 OC (140 OC for short periods during SiP) Ambient temp. - (-20 OC) ... +40 OC Viscosity - max ~150 cSt Flow: Max.: 125 m³/h (4414.33 ft³/h) Built-on inverter The Inverter allows full control over the operation of the pump by influencing motor speed. Changing motor speed affects the pumping parameters. Industrial flanged connections The industrial CTX I pumps are equipped with connections according to EN 1092-1 type11, ANSI 150 or BSPT thread. Adjustable feet The per fect solution allows the pump to be easily adapted to uneven, sloped ground. It can be used when there is need move to different location. Brackets for fixing on concrete fundaments Complete pump unit may stand on a baseplate to avoid movement. It can be firmly, permanently fixed to the ground.
