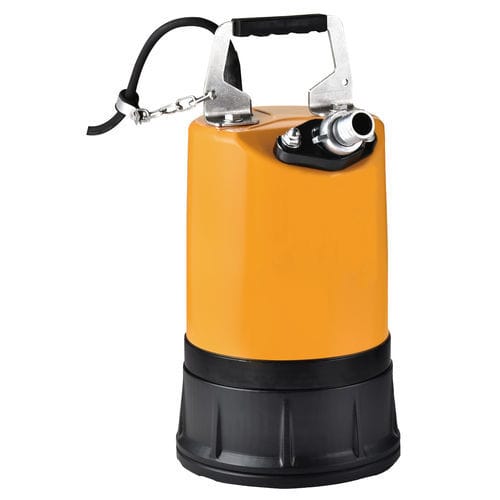

Water pump SG serieselectricsubmersibleimpeller
Add to favorites
Compare this product
Characteristics
- Fluid
- water
- Operation
- electric
- Priming
- submersible
- Technology
- impeller
- Mobility
- stationary, mobile
- Domain
- industrial
- Applications
- discharge, cooling, drain, outlet, reverse, drainage
- Voltage
- 230 V
- Protection level
- IP68
- Other characteristics
- small, vertical
- Flow
13 m³/h, 14 m³/h
(459.09067 ft³/h, 494.40533 ft³/h)- Head
11.5 m
(37'08" )- Power
0.48 kW
(0.65 hp)- Fluid temperature
Min.: 0 °C
(32 °F)Max.: 40 °C
(104 °F)- Width
205 mm
(8.07 in)- Height
358 mm
(14.09 in)- Weight
12.6 kg
(27.78 lb)
Description
SG has a smart design bottom plate that enables the pump to operate and drain down to 1 mm water level. The pump is equipped with a swing valve that prevents reverse flow from discharge hose when the pump is shut-off. A rubber stand protects the floor and ground surfaces from any scratches.
Water cooling route to the top outlet, allows the pump to operate for extended periods while pumping small amounts of water.
The discharge direction can be mounted either vertical or inclined, which prevents folding or bending of the discharge hose.
