Impeller pump SBA series
slurryairelectric

Impeller pump - SBA series - Tapflo - slurry / air / electric
Impeller pump - SBA series - Tapflo - slurry / air / electric
Add to favorites
Compare this product

Characteristics

Technology
impeller
Fluid
slurry, air
Operation
electric
Priming
submersible
Mobility
stationary, mobile
Domain
industrial
Applications
discharge, level control
Material
cast iron
Voltage
400 V
Protection level
IP68
Other characteristics
suction, heavy-duty, sensor
Flow

Min.: 18 m³/h
(635.664 ft³/h)

Max.: 60 m³/h
(2,118.88 ft³/h)

Head

19 m, 20 m, 25 m, 30 m
(62'04" , 65'07" , 82'00" , 98'05" )

Power

2.2 kW, 3.7 kW
(2.99 hp, 5.03 hp)

Fluid temperature

Min.: 0 °C
(32 °F)

Max.: 40 °C
(104 °F)

Width

234 mm, 235 mm, 283 mm
(9.21 in, 9.25 in, 11.14 in)

Height

557 mm, 629 mm, 636 mm, 720 mm
(21.93 in, 24.76 in, 25.04 in, 28.35 in)

Weight

40 kg, 46 kg, 64 kg, 72 kg
(88.18 lb, 101.41 lb, 141.1 lb, 158.73 lb)

Description

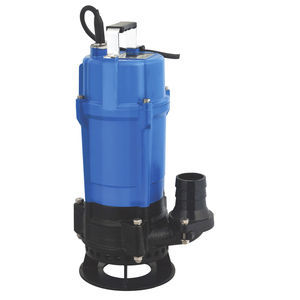

Tapflo SBA is a heavy-duty sludge pump made in cast iron, employing the SB series as its base. On SBA an agitator is provided to assist smooth suction of the pumped fluid. The side-flow, top-discharge design keeps the motor cool even if the pump is operated continuously with its motor exposed in air, and it makes the pump easier to place in a confined space. Impeller and agitator manufactured in strong chrome alloy. A semi-vortex impeller in combination with agitator minimizes clogging. SBA can be equipped with a level control sensor, marked by (E).
