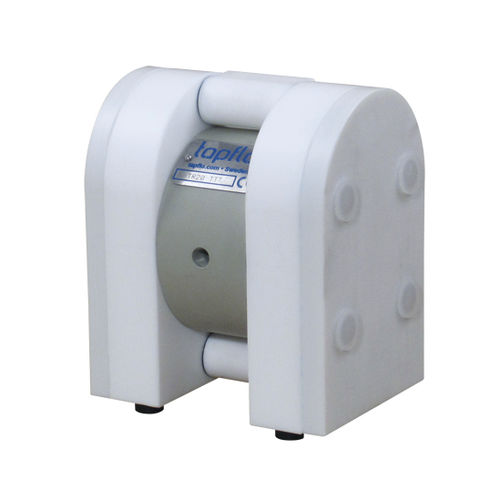

Diaphragm pump TR9

for chemicalspneumaticindustrial

Type: - TR 9 Atex/FDA: - TXR9 (ATEX version) Material: - PE or PTFE m3/h; l/min: - a max capacity of 11 l/min. Spheres to use: - • - Chemistry: acids, alkalis, alcohol, solvents, latex, emulsions • - Food: CIP fluid, flavouring, pigments • - Pulp, Paper: glue, slurries, adhesives, dispersions, resins, sodium silicate, titanium oxide • - Surface conditioning: electroplating baths, various acids, solvents, anodic sludge, varnish, enamels • - Water treatment: sludge handling, filter press applications, neutralization and flocculants • - Electronics: carrier fluids, ultra pure liquids, electroplating solutions, mercury, solvents • - Modular design concept • - Print, paint: glue, additives, varnish, ink, paint, latex, acid, resins, pigment Possible sizes: - TR 9, TR20, T50, T100, T200, T400, T800 Temperature max: - +110 C Pressure: - 8 bar Description: - TR9 and TXR9 (ATEX version) are the smallest in the range of PE & PTFE diaphragm pumps. Ideal for dosing applications and pumping to small containers. The small size grants is also space saving in compact OEM installations. Motor, kW: - No motor in construction Dimensions: - 70 × 90 × 120 mm
