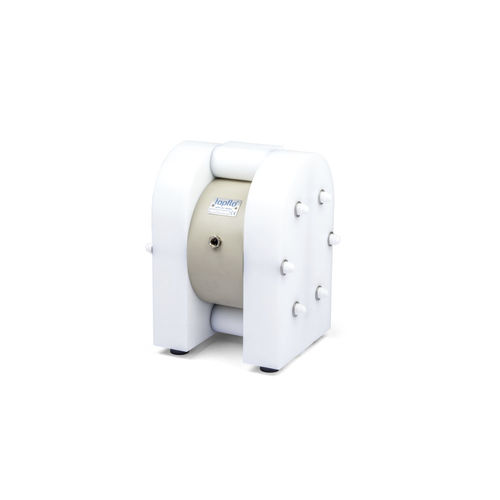

Diaphragm pump T100

for chemicalspneumaticindustrial

Type: - T 100 Atex/FDA: - TX 100 (ATEX) Material: - PE or PTFE m3/h; l/min: - a max capacity of 125 l/min. Spheres to use: • - Chemistry: acids, alkalis, alcohol, solvents, latex, emulsions • - Food: CIP fluid, flavouring, pigments • - Pulp, Paper: glue, slurries, adhesives, dispersions, resins, sodium silicate, titanium oxide • - Surface conditioning: electroplating baths, various acids, solvents, anodic sludge, varnish, enamels • - Water treatment: sludge handling, filter press applications, neutralization and flocculants • - Electronics: carrier fluids, ultra pure liquids, electroplating solutions, mercury, solvents • - Modular design concept • - Print, paint: glue, additives, varnish, ink, paint, latex, acid, resins, pigment Possible sizes: - TR 9, TR20, T50, T100, T200, T400, T800 Temperature max: - +110 C Pressure: - 8 bar Description: - Powerful middle sized pumps Motor, kW - No motor in construction Dimensions: - 200 × 214 × 320 mm
