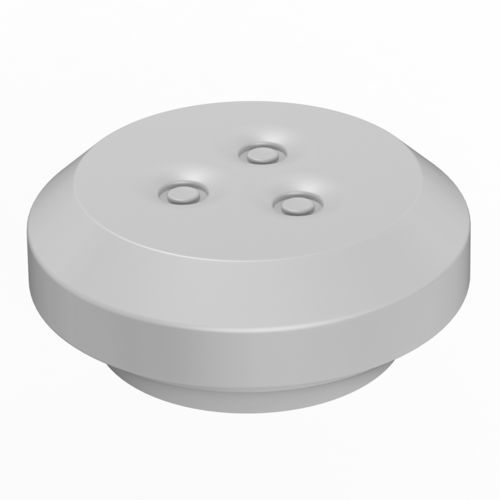

TPE cable grommet TSS Multi RAL series

membranewaterproofIP67

Push-out membrane. Up to 3 cables in each opening. "Joy-stick" effect thanks to built-in sock. Self-adjusting to wall thickness. Suits material thickness 0,5 - 3,5 mm. Ergonomic installation. Material: TPE - Halogen free. UL-listed material. Temperature range: -50°C..+125°C (Unstressed material) Product applications: Sealing cables and pipes. Works with material thickness 0,5-3,5mm, cable diam. 5-30mm. Other characteristics: IP67. Quick and simple assembly. Handles a very large cable span. Can be used as an end-plug for all applications. Offers “joy-stick” effect. Description: The TSS Multi is designed to seal up to three separate Cables in one single opening. As the standard TSS product series is fitted with socks that fits firmly around the cables and permits them to pass through at an angle without jeopardizing the IP67 classification. This “joy-stick” feature is unique to this product. With our “push-out” membrane installation is easily done by pushing the cable through the membrane. No need for tools, and a guarantee for a round opening and the right ingress protection. TSS handles a very large cable span. The soft material makes it perfect to use on rounded surfaces.
