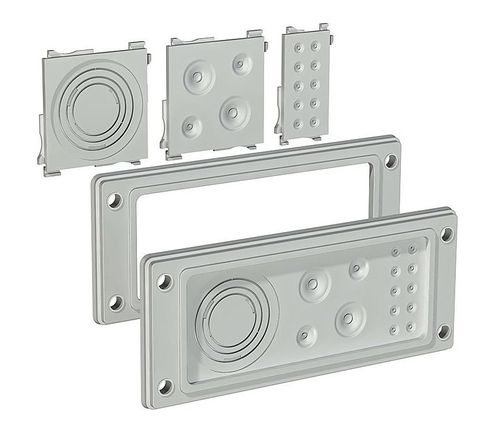

Modular cable entry system Design-A-Flange - RAL series

IP65for cables

Interchangeable inserts. Design your own solution. "Push-out" membranes. Klikseal or cable gland installation in the flange. Possible to change configuration later on. "Free placement" of openings. IP65, with or without cables. Compact design. Material: - Fiberglass re-inforced Polypropylene and TPE Halogen free. UL-listed materials Temperature range: -20°C..+125°C (Unstressed material Product applications: FL13 and FL21 sizes. For cables in diam. 4-35mm Other characteristics: IP65. Modular product where you design your own solution to fit your needs. Description: Design-A-Flange is a modular system where inserts can be altered depending on the users needs. The user can either choose from a pre-configured setting or a custom-made design according to his specifications. Placement of openings, number of openings and size of openings is defined by the user. The configuration can also be changed later on, as needs change. All inserts come with push-out membranes and the flexible sock we also have in our TSS. Another feature that makes this flange unique is that you can fit a cable gland or our own Klikseal directly into the flange. No need to drill a separate hole on the side.
