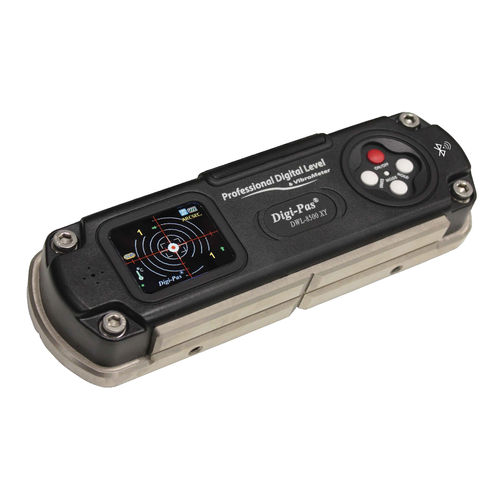

2-axis inclinometer DWL-8500XY

digitalUSBwireless

2-Axis Ultra Precision Inclinometer - Model: DWL 8500XY DWL-8500XY is a 2-Axis Ultra Precision Inclinometer with built-in Vibrometer, having resolution and accuracy of 1 arcsec or 5µm/M and wide measuring range of 14,400 arcsec or 70mm/M for leveling, 2D tilt angles, planar alignment & vibration measurements, and capable of real-time wireless Bluetooth/USB remote measuring & data logging. It is designed to greatly simplifying the task of professionals & specialists in installation, setting up, analysis and characterization of very large-sized CNC machines, surface flatness profiling, high precision test/measuring instruments & alignment-sensitive equipment. Specification •Measuring range from0.0 to 14400 Arcsec Single-Axis 0.0 to 7200 Arcsec Dual-Axis •Resolution of1 Arcsec (≤ 5µm/M) •Accuracy±1 Arcsec at 0 to 1080 arcsec ±3 Arcsec at other angles •3D surface geometry graph using PC-Sync Software for high accuracy surface flatness advantages that traditional single-axis spirit level or single-axis digital level is difficult or unable to match. i.e. effectively, only one person is required to level/align a machine. ACCREDITATION Instrument accuracy is verified by accredited 3rd party Calibration & Test bodies and National Metrology Centre of Singapore traceable to SI standard and NIST, JIS, UKAS & DIN under CIPM MRA.
