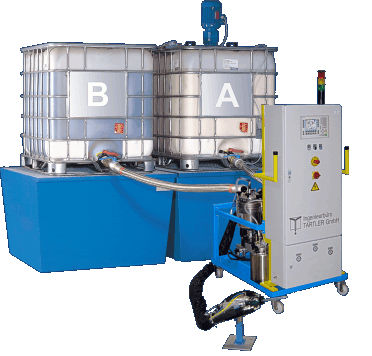

Mixer-dispenser with gear pump Nodopur B 1000

for resin transfer molding (RTM)

Two component dose and mix machine for efficiant application of liquid synthetics from polyurethane and epoxi resins. Applications : Prototyp component fabrication, Adhesive processing, RTM (Resin Transfer Molding), repetition part-fabrication, Electric grouting, Spraying applications, Production- or series-production Metering pump drive : Frequency regulated electric motor 0,37 till 2,2 kW Mixing ratio : 100:10 till 100:100 depends on pump combination special versions possible Adjustment: mixing ratio with input in control Output : up to 100 l/min. at MV 100 : 100 possible (Output depends strongly on viscosity of the A and B component in the free inlet!) Depending on pump combination at range 1:10 adjustable
