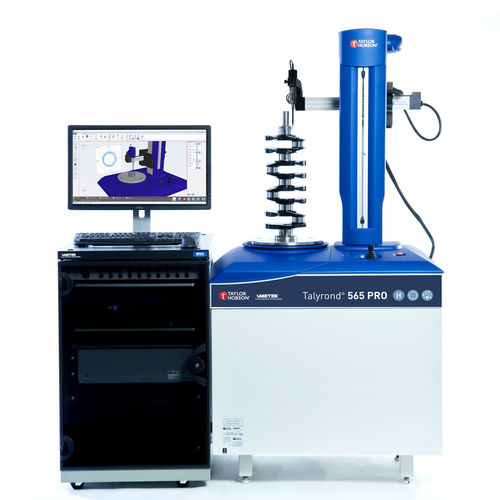

Roundness measuring machine Talyrond® 565H PRO

concentricitystraightnessbearing

The Talyrond® 565H PRO is an extremely popular instrument providing parameters such as roundness, cylindricity and straightness amongst others, the system has been designed for stability and accuracy and consists of a frictionless air bearing spindle mounted within a cast iron base and a precision machined column. There are 6 systems to choose from with columns ranging from 300 mm to 1200 mm in height as well as choices of automated or manual centre and levelling depending on your needs. The Talyrond® 565H PRO is truly a cost effective instrument providing the user full measurement and analysis capability traceable to national and international standards. •Automated Gauge calibration •Automatic Centre and level with arm follow mode •High precision air bearing spindle ± 0.015 µm •Gauge resolution 0.3 nm •300 mm, 500 mm, 1000 mm or 1200 mm Vertical straightness unit •Ball screw - full length of the contact point of the ball screw or lead screw •Camshafts - comparison to a DXF or lift data. •Bearing races - harmonic analysis •Crankshafts - Roundness, straightness, cylindricity, parallelism, twist and surface texture •Roller bearings - roughness, form, roundness and part alignment •Fluid dynamic bearings - roundness, topography and roughness
