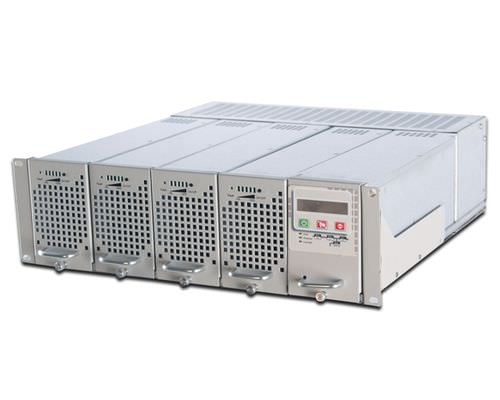

Off-grid DC/AC inverter STM250

sine wavefor industrial applicationsmodular

STM250 is a sub-rack inverter system integrating TM250 inverter module and TJ20 module. It is a truly redundant system offering functions of pure sine wave inverter, bypass transfer switch and monitor into one 193U sub-rack. Single module is hot plug design which make the maintenance an easy job without interruption to your critical load. For 100Vac/110Vac/120Vac , max 4KVA is available. Features: 1.System max power 110Vdc 6KVA/220Vdc 8KVA 230VAC STM250 modular inverter systems 2. 193U 3.Pure Sine Wave, with THD<3% 4.N+1 redundant configuration 5.Hot plug in technology 6.Max efficiency up to 90% 7.DC-AC isolation improving system security 8.Built in bypass transfer switch 9.Quick transfer time 5-8ms 10.Built in monitor module 11.Voltage adjustable 230Vac (200-240) or 110Vac (100-120) 12.Working mode selectable (AC priority or DC priority ) 13.RS485 or RS232 communication port 14.Relay dry contact 15.Built in SNMP card optional Standard EN60950-1 EN55022
