Oil mist extractor OEN 150
mobile

Oil mist extractor - OEN 150 - TBH GmbH - mobile
Oil mist extractor - OEN 150 - TBH GmbH - mobile
Oil mist extractor - OEN 150 - TBH GmbH - mobile - image - 2
Oil mist extractor - OEN 150 - TBH GmbH - mobile - image - 3
Oil mist extractor - OEN 150 - TBH GmbH - mobile - image - 4
Oil mist extractor - OEN 150 - TBH GmbH - mobile - image - 5
Add to favorites
Compare this product


Characteristics

Application
oil
Other characteristics
mobile
Flow rate

Min.: 50 m³/h
(1,766 ft³/h)

Max.: 320 m³/h
(11,301 ft³/h)

Description

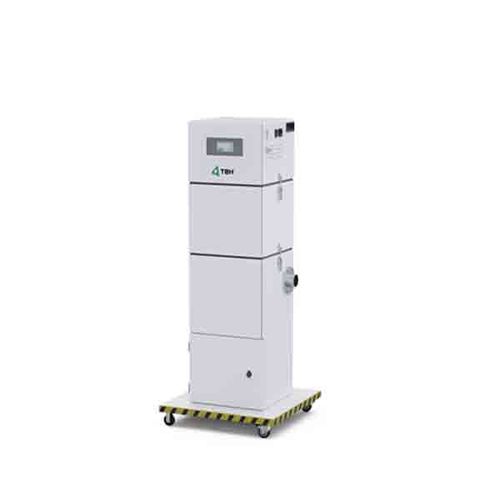

The OEN 150 is an extraction unit specially designed for metalworking, designed to efficiently handle cooling oil and cooling emulsion mist with medium-volume particles. It is characterized by easy maintenance and user-friendly filter change, which is possible from the top or front. The system can be controlled externally via a Sub-D 25 interface, which optimizes its adaptability and performance. With an air volume flow of up to 320 m³/h and a static pressure of 20000 Pa, it offers powerful extraction performance at a sound level of approx. 64 db(A). The OEN 150 comes with an aluminum mesh and saturation filter system for optimal particle and liquid separation and is also available with an activated carbon module for specific cleaning needs, making it a versatile solution for improved air quality and safety in metalworking.

Catalogs

OEN SERIES
OEN SERIES
28 Pages
