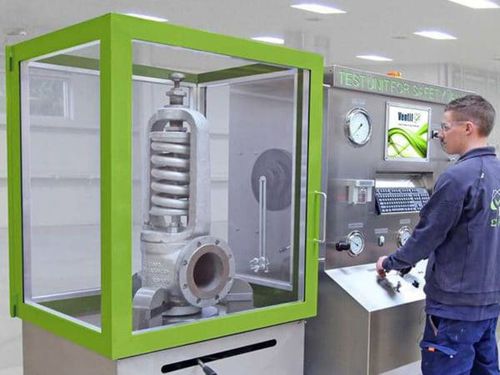

Pressure testing machine

currentcalibrationcomputer-controlled

Vertical clamping test benches for safety valves and valves. For all types of valves: diameter ¼”” to 64 Air & Gas, Water & Liquid testing, others Computerized system for test management and edition of calibrated reports Operator and bench safety devices High pressure supply option: external (compressor) or internal (integrated booster) Certified tanks (PED or other such as DGM/ARH file) Compliant with current regulatory standards and controls: body, seat leakage, calibration (PDO). API, ASME, EN, ISO. Stationary version (workshops) or transportable, ultra compact case Support, commissioning, training & after-sales service. Troubleshooting and remote control possible. Common ranges: Clamping 5 T : Diam. 1/2 – 6″” / DN15-150MM Clamping 30 T S: ø 1/2 – 10″” / DN15 – 250 MM Clamping 30 T L: ø 1/2 – 16″” DN15 – 400 MM Clamping 50 T: ø 1/2 – 16″” DN15 – 400 MM Clamping 100 T : ø 2 – 24″” / DN50 – 600 MM Clamping 200 T : ø 2 – 36″” / DN50 – 900MM Clamping 500 T : ø 2 – 48″” / DN50 – 1200 MM Ergonomic, stainless steel control panel with visual markers for test sequence Test systems: 3 clamp system, proportional, remote controlled and manual. The upper part is completed with a computerized recording system: Digital readout of test pressure, test time, etc. Seat leakage rate. Management and edition of personalized test report Compliant with current standards. Includes: API 6A, API 6D, API 598, ISO 5208 and API 527, ASME PCT25 Operator protection screen, clamping station enclosure according to bench Clamping system clamping to prevent loosening of the test object in case of pressure/test Flashing light to indicate the pressurization
