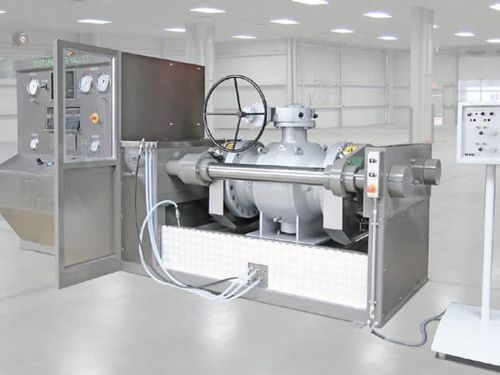

Pressure testing machine

currentcalibrationmanual

Horizontal clamping test benches for the test of control valves. Can be used for all types of valves : diameter ¼ “” to 64”. Air / Gas, Water / Liquid tests, others. Computerized system for calibration report edition. Operator and bench safety devices. High pressure supply options: external (compressor) or internal (integrated booster) Certified tanks (PED or other ex. DGM/ARH file for aborad country such as Algeria). Compliant with current regulatory standards and controls: body, seat leakage, calibration (PDO). API, ASME, EN, ISO. Stationary versions (workshops) or transportable, ultra compact case. Support, commissioning, training & after sales service. Troubleshooting and remote control possible. Common ranges: Clamping 5 T : Diam. 1/2 – 6″” / DN15-150MM Clamping 30 T S: ø 1/2 – 10″” / DN15 – 250 MM Clamping 30 T L: ø 1/2 – 16″” DN15 – 400 MM Clamping 50 T – S : ø 1/2 – 10″” DN15 – 250 MM Clamping 50 T – L : ø 1/2 – 16″” DN15 – 400 MM Clamping 75 T : ø 1 – 16″” DN15 – 400 MM Clamping 100 T : ø 1 – 24″” / DN25 – 600 MM Clamping 150 T : ø 2 – 36″” / DN25 – 600MM Clamping 250 T : ø 2 – 24″” / DN50 – 600 MM Clamping 400 T : ø 1/2 – 16″” DN15 – 250 MM Other forces and diameters available as standard or made to measure : 600,800,1000,1500,2000,3000 & 4000 Tons Ergonomic stainless steel control panel with visual cues for test sequence Test Systems: 3 clamp, proportional, remote controlled and manual clamping system. The upper part is complete Computerized recording system: Digital readout of test pressure, test time, etc. Seat leakage rate. Management and edition of personalized test report Compliant with current standards.
