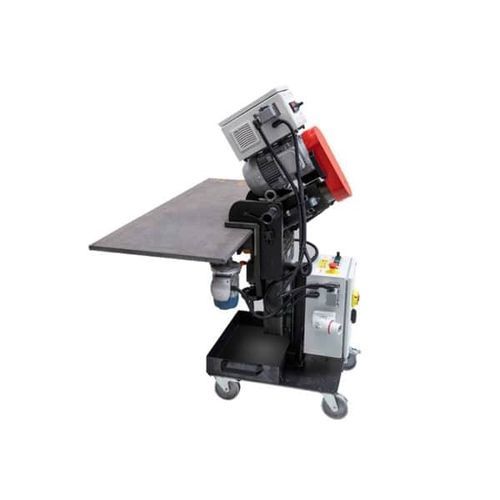

Electric beveling machine

mobilesheet metalstainless steel

Versatile beveling machine for workshopplate beveling operations or intensive production. It bevels all types of materials for optimum surface finish and is equipped with a damping system that corrects sheet or floor imperfections. Working range: 6 to 60 mm (1/4″” – 2 3⁄8″”) for a maximum diagonal of 50 mm. The machine is equipped with a 10° to 70° variable angle head, which allows the bevel angle to be changed quickly. Includes a sheet metal presence sensor and a carriage with chip conveying system. The feeding is automatic thanks to the variable speed drive system: the sheet metal beveler slides along the sheet profile without any action from the operator. Standard data: Working range: Sheets from 6 to 60 mm thick Bevel : 10° à 70°. Materials: Carbon steel, stainless steel, duplex, super duplex, inconel, aluminum, etc. Power supply : Three-phase 400V 50Hz Voltage: 230 / 400V (Custom voltage possible) Frequency: 50 / 60 Hz Angle range: 10° – 70° (optional) Thickness range : Min 6 mm – Max 60 mm Max diagonal sheet length : 50 mm Feed speed : 0/18 Mt./min Weight : 150 Kg Acoustic emission : 76 D
