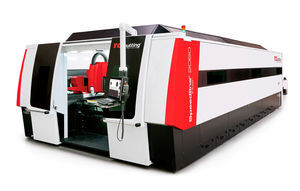

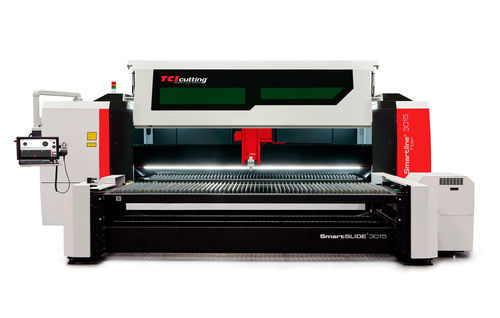

Fiber laser cutting machine Smartline Fiber

for stainless steelfor steelfor aluminum

The most flexible and accessible 2D fiber laser cutting system on the market specially designed for customers who seek maximum productivity in short, fast and highly variable production processes in sheet metal cutting. Up to 15 kW of power. Compact, 20% space saving. Reduce unit cost per piece and improve response times for clients of various types. Maximum cutting quality and perfect parts in materials such as steel, stainless steel, aluminum, brass and copper, among others; of thin and medium thickness sheets. Option of taylor-made intelligent automation system, automated loading, unloading and storage and Production Management Intelligent Software for autonomous and strategic decision making. Optimize your cutting machine and gain competitiveness. Feature - 3015 - 4020 Maximum load - 950 kg - 1.800 kg Heads - 1 - 1 Maximum simultaneous positioning speed - 170 m/min - 170 m/min Maximum axial acceleration - 19,6 m/s2 (2G) - 19,6 m/s2 (2G) Machine tolerance VDI/DGQ3441 - ± 0.05 mm/m - ± 0.05 mm/m Repeatibility - ± 0.025 mm - ± 0.025 mm Power output - From 1 kW to 15 kW - From 1 kW to 15 kW Dimensions - 3.000x1.500x100 mm - 4.000x2.000x100 mm Fully enclosed and cabined machine - Included - Included Smoke extraction system - Included - Included Cooling system - Included - Included Automatic table exchanger - Included - Included Automatic loader and unloader - Optional - Optional
