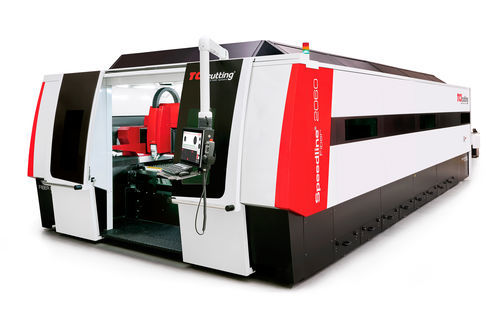

Fiber laser cutting machine Speedline
for metal

Fiber laser cutting machine - Speedline - TCI CUTTING - for metal
Fiber laser cutting machine - Speedline - TCI CUTTING - for metal
Add to favorites
Compare this product


Characteristics

Technology
fiber laser
Material
for metal
X travel

3,000 mm, 4,000 mm, 6,000 mm
(118.11 in, 157.48 in, 236.22 in)

Y travel

1,500 mm, 2,000 mm, 3,000 mm
(59.06 in, 78.74 in, 118.11 in)

Laser power

1,000 W, 2,000 W, 3,000 W, 4,000 W, 6,000 W

Description

The Speedline series is specially developed to offer laser cutting solutions for large formats. 2D cutting and option of 2D1/2 and multihead for simultaneous cutting jobs, automatically adjustable in distance. Up to 14 m long to meet cutting needs of XXL formats. Up to 20 kW of power. Highest quality and cutting speed in thin and thick sheets. All this with high energy efficiency that reduces electricity consumption to a minimum. Taylor-made intelligent automation option, automated loading and unloading system and Production Management Intelligent Software for autonomous and strategic decision making. Optimize your cutting machine and gain competitiveness. Feature - 2060 - 3060 Maximum load - 2.400 kg - 3.600 kg Heads - 1 or 2 (2D1/2 cutting option) - 1 or 2 (2D1/2 cutting option) Maximum simultaneous positioning speed - 170 m/min - 170 m/min Maximum axial acceleration - 19,6 m/s2 (2G) - 19,6 m/s2 (2G) Machine tolerance VDI/DGQ3441 - ± 0.05 mm/m - ± 0.05 mm/m Repeatibility - ± 0.025 mm - ± 0.025 mm Power output - From 1 kW to 20 kW - From 1 kW to 20 kW Dimensions - 2.000x6.000x100 mm - 3.000x6.000x100 mm Fully enclosed and cabined machine - Included - Included Smoke extraction system - Included - Included Cooling system - Included - Included Automatic table exchanger - Included - Included Automatic loader and unloader - Optional - Optional
