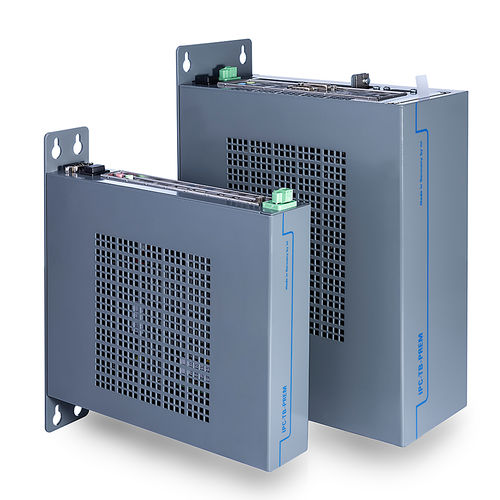

Box PC IPC-TB-PREM

Intel® Core i3HDMIDisplayPort

IPC-TB PREM is based on the Intel Core i CPUs (Mini-ITX) of the latest generation. The Version IPC-TB-PREM1S offers a free PCI Express slot and the 2.5-inch SSD is removable from the outside. This gives you the ideal base for image processing, data acquisition, and other compute-intensive applications. The sturdy steel housing is powder-coated. You can mount it with booksize mounting in the control cabinet or directly on the machine. The advantages are... high computing power in the smallest space wireless, robust system design Intel Core i CPUs fanless variants optional a free PCIe slot compact IPC for flexible booksize mounting powder coated sheet steel housing SSD, optionally 2.5 HDD interfaces: IPC-TB-PREM-0S: 1x HDMI, 2x DisplayPort, 4x USB 3.0, 2x RJ45 LAN, Audio IPC-TB-PREM-1S: 1x DVI-I, 1x DisplayPort, 3x USB2.0, 2x USB3.0, 2x RJ-45 LAN, 2x PS/2, 1x COM working temperature: 0 up to +50°C storage temperature: -20 up to +60°C relative humidity: 10 to 80% not condensing Storage / Transportation 10 to 90%, not condensing power input: 24 VDC 0-slot weight: 2,8 kg 1-slot weight: 3,2 kg
