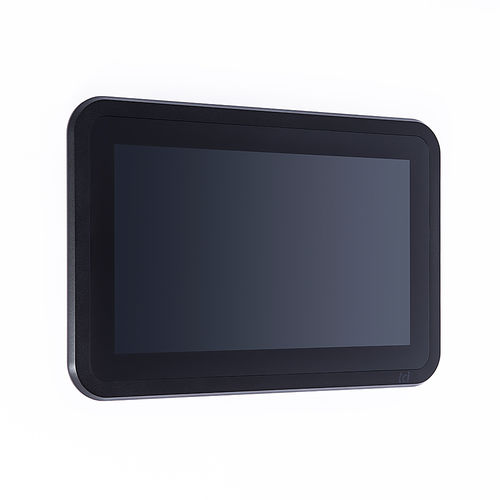

Touch screen panel PC E10A

LCDwidescreen7"

The 10-inch touchpanel is ideal for cost-sensitive industrial applications. The slim and rugged touch panel with IP protection scores highly with an easy-to-clean, all-glass front and an industrial synthetic chassis. The fanless panels are available as PLC operating panel E10A-XS and Android touch panel E10A-XI. The technically identical E10T is available for support arm mounting. Alternatively, we offer the system with 4" and 7" touch. The Advantages are... E10A-XI, 24V: UL certified Widescreen touch panel for panel mounting PCT Glas Touch 10.1" with native resolution of 1024*600 optionally serial interfaces Applications: Cooling control Energy Management Technical solutions Thanks to the Android operating system and HTML5 browser, the panel can be used universally in the classic HMI area, for example for operation and visualization. Optionally, serial interfaces are possible. XS technology includes the optimal combination of MicroBrowser and power-efficient ARM hardware. The PLC operator terminals from TCI with drivers for all common PLC systems as well as OPC client and VNC client are based on this. Touch Panel for panel mounting or VESA 75 10" LED-TFT, 1024 x 600, 450 cd/m² capacitive multitouch (PCT) synthetic chassis fanless Protection category IP 54 storage temperature: 0 up to 70°C relative humidity: Operating: 10 to 90% not condensing working temperature: E10A-XS: 0 up to 60°C E10A-XI: 0 up to 50°C power input: E10A-XS: 24 VDC and PoE (class 0) E10A-XI: 24 VDC or PoE (class 0) or AC via external power supply. Optional accessories: 24 VDC and RS485 weight: 1,00 kg
