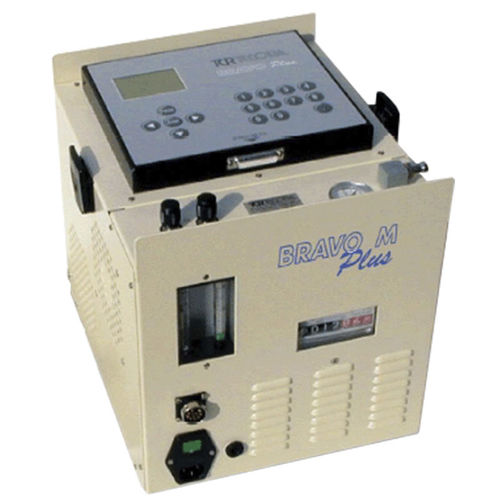

Gas sampler Bravo Plus series

dustautomaticfor environmental analysis

Bravo Plus is the programmable version of the portable constant flow rate sampler of TCR Tecora. Bravo Plus is the programmable version of the portable constant flow rate sampler which incorporates a controller module with microprocessor. Its versatility, united to its wide sampling capability, makes it suitable for dust and gas sampling either in stack or in ambient. Its updated electronic system allows the samplings to be programmed with the real date and hour. The volume and temperature values are measured electronically at the dry gas meter during the sampling. At the end of the sampling, the instrument performs the volume normalization and prepares the detailed report of the measuring. Through a wide matrix display, it is possible to visualise all the measurements, at any moment. Thanks to an RS232 interface, all the contents of the memory (more than 60 samplings) may be downloaded on PC. By installing the sequential interface (*) it is possible to control the sequential manifolds for the dust and gas sampling up to 24 samples. The Bravo Plus is available with two different pump types, a “rotary vane”, and a “membrane” pump. Main Features Wide flow rate range Pulsation free linearized flow Built-in dry gas meter More than 60 sampling Reports can be memorized, and displayed or transferred on PC Permanent date and hour programming Power loss management by memorizing the events in the final report Wide, back-lighted graphical LCD display, dedicated keyboard Sequential interface (*) Remote control via SMS (*)
