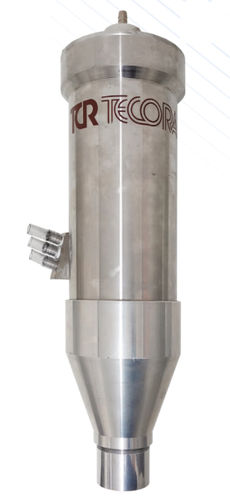

Cyclone separator P series

liquidsparticlegas

The multistage cyclone allows high volume sampling, avoiding the pressure drop due to traditional membrane filter sampling systems. Three stage cyclone for size-selective aerosol sampling. Different configurations are available: dry or liquid particle collection in each sampling stage, POPs sampling (gas + PM). The multistage cyclone is combined with traditional high volume samplers for effectively aerosol sampling for outdoor and indoor environmental monitoring MAIN FEATURES: © Three-stage cyclone separator: 4 stages available for PM]0/ PM2.5, PM|, PM4 fractions; © Dry and wet version; © Workflow: 9-12 m3/h (flow 150-200 L/min) otherflows on request; © The cyclone avoids the collection of the aérosol particles on the filter by filtration, making it possible to easily recoverthe sample (wet/dry) directly from the container for analysis; © High air flow rate (up to 200 L/min) © Différent sampling support for wet/dry particle collection (Pyrex, PTFE...)
