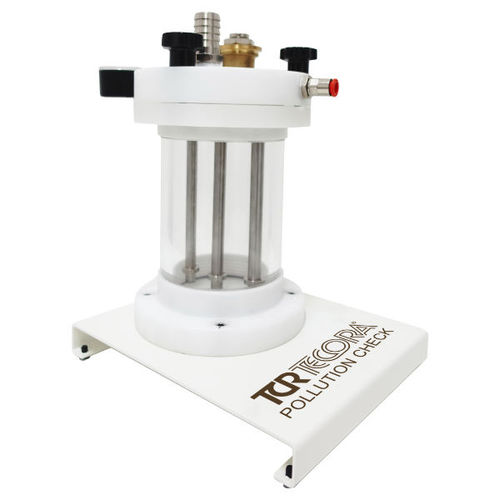

Aerosol generator Laskin Aero X

Laskin nozzles have been used for years as aerosol generators for filters test systems (e.g. HEPA – ULPA) and in aerosol research. Due to the sensitive nature of aerosol generation, Laskin nozzles are also used to produce “aerosol test” to study the effects of bioaerosols. TCR TECORA® has developed a new series of Laskin generators, called AERO-X capable of being used for most applications. NOZZLE DESCRIPTION A Laskin nozzle consist of a steel tube (ptfe – titanium as an option) with four holes (1 mm diameter) arranged symmetrically radial and perpendicular to the axis of the nozzle tube. Close to the holes from which the pressurized air comes out, there is a “collar” disc with a larger dimeter in which there are 4 precision holes (2 mm diameter) arranged along the axis of the nozzles itself. The nozzle in the container is fully immersed in the solution to be sprayed. Different solutions and suspensions such as DEHS (DiEthylHexySebacate1)DOP(DioctylPhthalate),EMERY3004, NaCl (Sodium chloride), PSL (Latex Sphere), Methylene Blue, Silicon oil… can be inserted.
