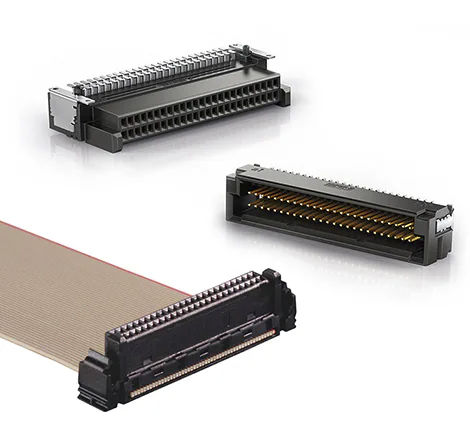

Data connector ERNI MicroCon

PCBSMTstraight

The MicroCon series expands the portfolio of robust and compact SMD connectors. These are miniaturized double-row Finepitch connectors with a grid dimension of 0.8 millimeters and available with different numbers of poles from 12 to 100. They are predestined for demanding industrial applications and make no compromises when it comes to robustness and reliability. The Blind-Mate pre-centering with increased catch range helps ensure more secure plugging, while the reinforced outer walls of the multipole connector allow a high degree of robustness. • Miniaturized, compact design • Straight and angled connectors • Many pincounts available • Variable PCB spacings possible • Cable connectors with insulation displacement terminations • A high degree of reliability • Dual beam spring contact design • Good contact, wide contact area • Shock, vibration, heat-resistant • High holding force on printed circuit boards Industry • Sensor technology • Light Barriers and Feelers • Miniature PLCs • Fieldbus modules • Miniature valve terminal Technology • Systems • Bus modules Medical equipment • Intensive care medical equipment • Portable diagnostic devices Telecommunications • PDAs • Organizers • Memory module Embedded • Automation • Industry • Car radios • Car multimedia equipment
