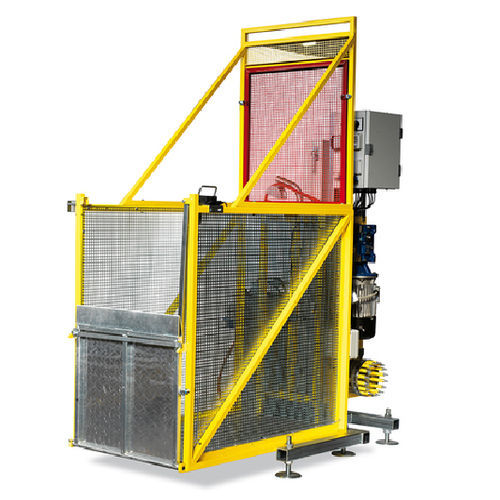

Construction elevator FULL200electricfor the construction industryplatform
Add to favorites
Compare this product
Characteristics
- Operation
- electric
- Application domain
- for the construction industry
- Applications
- for construction
- Other characteristics
- platform, column type
- Carrying capacity
300 kg
(661.4 lb)- Lifting height
45 m
(147'07" )
Description
RACK AND PINION HOIST FOR MATERIALS AND PERSONS
Basic Equipment Rack and Pinion Hoist for persons and materials single-phase
1 Transport Platform
1 Scaffolding Anchorage
1 Anchorage Support
1 Cable Guide
1 Floor Stop
1 Plug
1 Levelling tool
1 Protection Roof
20 meters of electric cable
• Type of Load : Materials and Persons
• Platform Length : 1.02 M
• Platform Width : 1.73 M
• Platform Height : 2.22 M
• Lifting Speed with Persons : 15 M/min
• Lifting Speed with Materials : 15 M/min
• Anchorage tie : 3 M
• Motor Power : 2,2 Kw
• Power Supply : Single-phase
