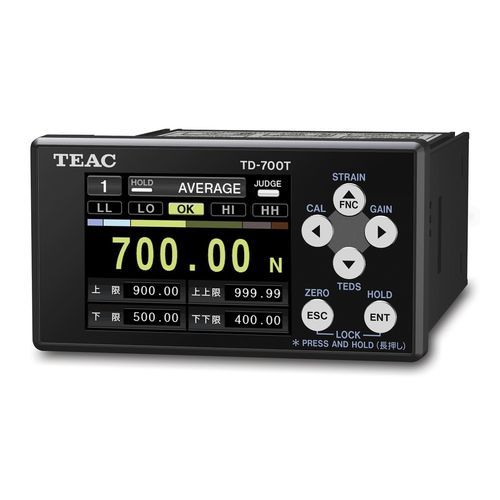

TD-700T is a digital indicator to measure and display physical quantity such as load, pressure, and torque working with strain gauge transducer.
Color graphic LCD display, high-speed sampling, TEDS function (IEEE1451.4 class 2 mix mode interface compliance) and various hold functions are combined into this compact panel mount display (1/8 DIN size)
The TD-700T provides the best performance in the various scenes
High performance color graphic LCD Screen
Vivid display gives immediate process status. Each alarm intuitively and independently advises process condition
The home screen can be selected from "standard", "bar meter" and "indicator value", and also can be customized tailored to your applications.
Examples of information on the display
The fast 4Ks/S sampling rate shows the process levels vividly and in real time. The TD-700T shows what happens before, during and after any event.
A variety of display modes is available to meet your purpose.
Numbers only & bar meter display function
Switchable between the 5-digit digital display that enables direct reading of physical quantities up to ±99999 and the bar meter display that shows an analog representation of the indicator value
High-speed processing
Sampling and response times of 4000 per second. You can realize higher measurement accuracy and reliability with faster sampling of 20,000 cycles/s in Fast mode
TEDS function(Automatic Calibration)
TEAC load cells and digital indicators are compatible with TEDS (Transducer Electronic Data Sheet) which is a format defined in the IEEE 1451.4 standard. Support for TEDS sensors makes calibration easy. Automatic calibration is also possible when a TEDS sensor is connected.
