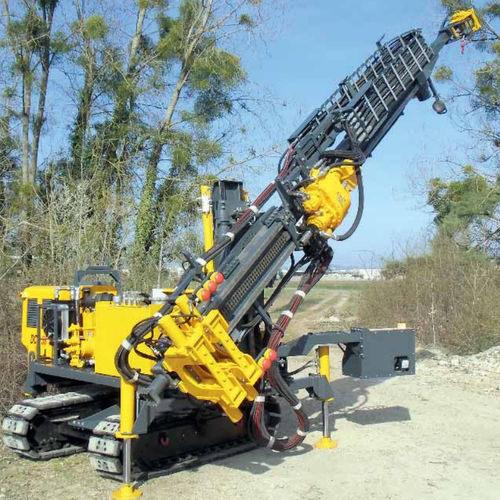

Core drilling drilling rig DCH56soil investigationmultifunctionwater well
Add to favorites
Compare this product
Characteristics
- Drilling type
- core drilling
- Function
- soil investigation
- Applications
- multifunction, water well
- Mobility
- crawler
- Drilling unit
- rotary, down-the-hole, tophammer
- Engine model
- DEUTZ
- Other characteristics
- hydraulic, diesel engine
- Drilling diameter
4 in
- Drilling depth
2,350 mm
(92.52 in)- Machine weight
6 t, 7 t
(6.6 us ton, 7.7 us ton)- Motor power
56 kW
(76.14 hp)
Description
FOR SOIL INVESTIGATIONS, SMALL WATER WELLS, MICROPILES…
Example of capacities
- bottom hammer : 100 m with 6'',
- roller bit : 80 m with 6'' ou 40 m with 10'',
- auger : 40 m with 4'',
- The values depend of the soil.
Simple Specifications
- weight : 6 t to 7 t,
- Power : 56 kW,
- stroke : 2350 mm.
SAFETY:
Return of the hydraulic oil into the hydraulic tank,
Passive emergency stop at front,
Emergency stop at rear.
QUICK SETTING
