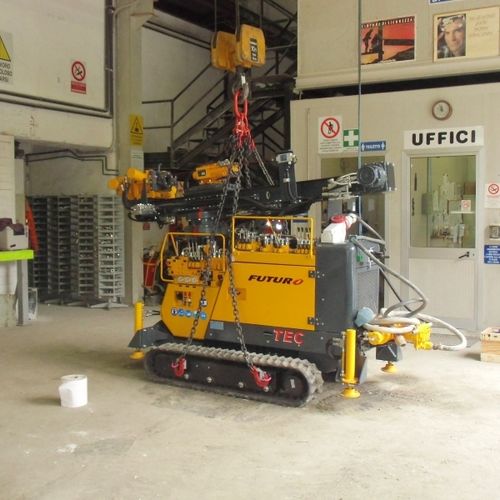

Core drilling drilling rig FUTUROmicropilefixedcrawler
Add to favorites
Compare this product
Characteristics
- Drilling type
- core drilling
- Applications
- micropile
- Mobility
- fixed, crawler
- Drilling unit
- tophammer
- Engine model
- DEUTZ
- Other characteristics
- hydraulic, diesel engine, electric
- Drilling diameter
4 in
- Drilling depth
1,250 mm, 1,750 mm, 2,250 mm
(49.21 in, 68.9 in, 88.58 in)- Machine weight
2 t, 2.4 t
(2.2 us ton, 2.6 us ton)- Motor power
35 kW, 37 kW
(47.59 hp, 50.31 hp)
Description
Specifications
Global :
- Weight: 2 t to 2.4 t
- Power: 35 kW (thermal) or 37 kW (electric)
- Stroke: 1250/1750/2250 mm
Crawler :
- Ruber shoes width : 9.84 in
- Ground pressure : 8.7 to 10.2 psi
Mast :
- Fixed ou adjustable
- Lifting : 5 à 100°
- Lateral rotation : +/- 20° (manual), +/- 180° with short mast (hydraulique)
Rotary head :
- Rotation : 40 à 1050 rpm
- Stroke : 26 à 700 daNm
Example of capacities
- Bottom hammer: 75 m with 6 ''
- Roller bit: 50 m with 6 '' or 30 m with 10 ''
- Auger: 30 m in 4 ''
