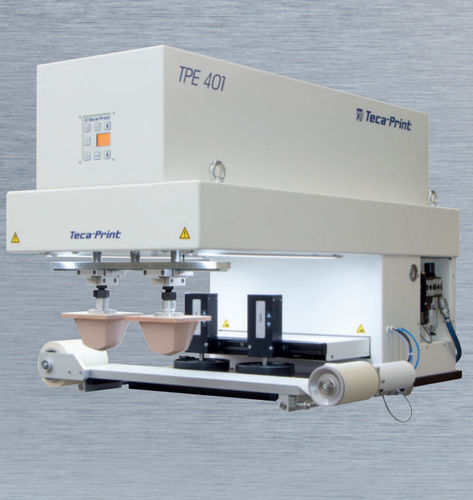

Pad printing machine with closed ink cup TPE 401

automaticmonochrome2-color

The pad printing machine TPE 401 the idealpartner for the realization of medium to large printimages using a sealed inking system. With a plate width of up to 450 mm round inkcups up to Ø 130 mm can be used. Oval inkcups for longish print images are also available.The electropneumatic machine convinces witha wide range of possible applications and anoptimized price-performance ratio. The compact PLC control unit is easy to understand anduser-friendly. There are two possibilities to fasten the ink cup:either the practical ink cup holder with bayonetlock or the optionally available electrical rotatingcup cylinder. Many extras, such as the automatic pad cleaningdevice, are available as standard. INK CUP SIZES round ink cups (Ø in mm): 105 / 115 / 130 oval ink cups (w x d in mm): 120 x 96 / 140 x 70 / 226 x 116 PLATE SIZES standard plate width in mm: 150 / 350 / 450 standard plate depth in mm: 300 INK CUP FASTENING ink cup holder with bayonet lock, optional rotating cup cylinder with continuous rotation of the ink cup CONNECTION 230 V / 50 Hz compressed air 5 to 6 bar AIR CONSUMPTION 3.0 litre per cycle at 6 bar WEIGHT approx. 200 kg without base approx. 386 kg with MS 400 base DIMENSIONS w = 528 mm h = 715 mm d = 1150 mm Dimensions are indicated without base
