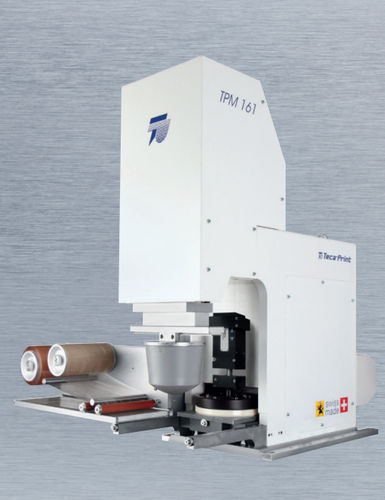

Pad printing machine with closed ink cup TPM 161

monochromefor the printing industrywith touchscreen

The TPM 161 electromechanical pad printingmachine was created for integration into systems. Equipped with a modern PLC controllerand an external control panel with a colourtouchscreen display, the TPM 161 will satisfy themost demanding applications. As an option, theTPM 161 can be controlled via a bus system.With a printing force of almost 4000 N and aprinting capacity of 2'800 pieces per hour, theTPM 161 pad printing machine underlines itsability to perform within integrated print systemsettings. A pad cleaning device with a tape widthof 100 and 150 mm, as well as the TI 300 thinner injection unit are available as options. INC CUP SIZES Ø 72 mm 96 mm 130 mm 160 mm 180 mm (with overlapping ink cup) PLATE SIZES Standard plate sizes in mm: 100 x 220 / 125 x 260 150 x 300 / 160 x 300 180 x 350 / 190 x 350 CONNECTION 230 V / 50 Hz if compressed air is needed 5 to 6 bar CONTROL UNIT modular PLC as an option: via bus system PLATE ADJUSTMENT ± 2° (w axis) WEIGHT approx. 127 kg DIMENSIONS w = 300 mm h = 855 mm d = 852 mm
