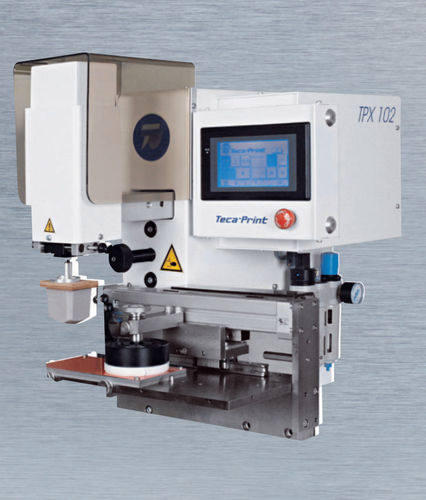

Pad printing machine with closed ink cup TPX 102

automaticmonochromefor watchmaking

The electropneumatic TPX 102 pad printingmachine is equiped with a sealed and lateralsliding inking system. Highest precision and repeatability characterize the TPX 102 as a high-quality pad printingmachine, even for the most subtle print images. For the fixation of the ink cup, either the electrical, rotating cup cylinder or the cup holder withbayonet lock are available. Different accessories as e.g. machine baseor coordinate table as well as further equipment like the automatic pad cleaning deviceor peripheral units are offered suitable for theTPX 102. The TPX 102 is available as "Édition Cadrans"including special extras and features for thewatch industry. INKING MECHANISM STROKE 150 mm INK CUP SIZES (Ø IN MM) 56 / 65 / 72 / 86 / 96 PLATE SIZES standard plate width in mm: 080 / 100 standard plate depth in mm: 150 / 200 / 220 / 250 REPEATABILITY < ± 0,02 mm CONNECTION 230 V / 50 Hz compressed air 5 - 6 bar AIR CONSUMPTION 0,47 liter per cycle at 6 bar CONTROL UNIT modular PLC, touchscreen VERTICAL PAD STROKE 100* mm / 140** mm - electronically - infinitely - adjustable PAD CLEARANCE 58,5 mm WEIGHT approx. 63,5 kg without base DIMENSIONS w = 391 mm h = 560* / 600** mm d = 706 mm Dimensions are indicated without base.
