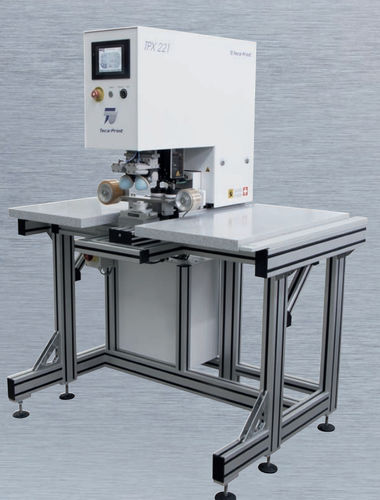

More than just a pad printing machine: TheTPX 221 combines the highest standard ofprecision and printing speed, to satisfy thehighest demands for print quality and accuracy.Designed for printing high quality products, theTPX 221 provides an easy and user-friendlyapproach to pad printing with its compact construction, integrated control system and colourtouch-screen display.
The TPX 221 underlines its role as a high qualityprecision machine through its optional systemfor temperature compensation of the horizontalpad stroke. Any positional variation of the machine of up to a thousandth of a millimeter resultingfrom a temperature fluctuation will be recognizedand corrected automatically.
INK CUP SIZES
Ø in mm: 56 / 65 / 72
PLATE SIZES
standard plate width in mm:
70 / 80 / 160 / 220 / 250 / 350
standard plate depth in mm:
140 / 150
CONNECTION
230 V / 50 Hz
5 - 6 bar if compressed air is needed
CONTROL UNIT
modular PLC
PLATE ADJUSTMENT
± 5 mm (x-axis)
± 1° (w-axis)
REPEAT ACCURACY
± 5 µ with use of the temperature
compensation system of the
horizontal pad stroke
WEIGHT
approx. 85 kg without base/frame
DIMENSIONS
w = 408 mm
h = 710 mm
d = 879 mm
Dimensions are indicated without base.
