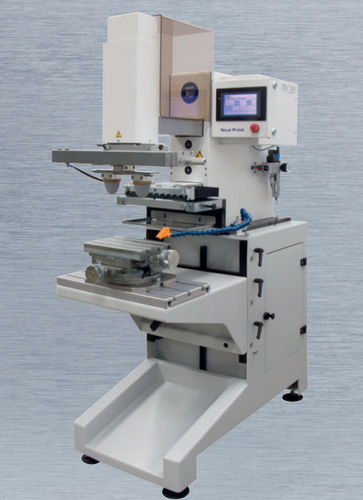

Pad printing machine with open ink cup TPX 250

automaticmonochrome2-color

The TPX 250 pad printing machine with anopen inking system is driven electropneumatically. The compact printing machine shows itsadvantages especially at manual workstations. The colour touch-screen enables a clear,user-friendly operation.Highest print accuracy and repeatability characterize the TPX 250 as a universally suitablepad printing machine for a variety of applications. The TPX 250 can be combined with manyperipheral devices, e.g. the automatic thinner injection, with rotary or swing table, padsliding device, etc. Various accessories suchas machine bases or coordinate tables are ofcourse also available. PLATE SIZES standard plate width in mm: 80 / 100 / 120 / 130 / 250 standard plate depth in mm: 80 / 100 / 120 REPEATABILITY < ± 0,02 mm CONNECTION 230 V / 50 Hz compressed air 5 - 6 bar AIR CONSUMPTION 0,85 liter per cycle at 6 bar CONTROL UNIT modular PLC VERTICAL PAD STROKE max. 100 mm - electronically - infinitely - adjustable PAD CLEARANCE max. 114 mm WEIGHT approx. 70 kg without base DIMENSIONS w = 471 mm h = 586 mm d = 893 mm Dimensions are indicated without base.
