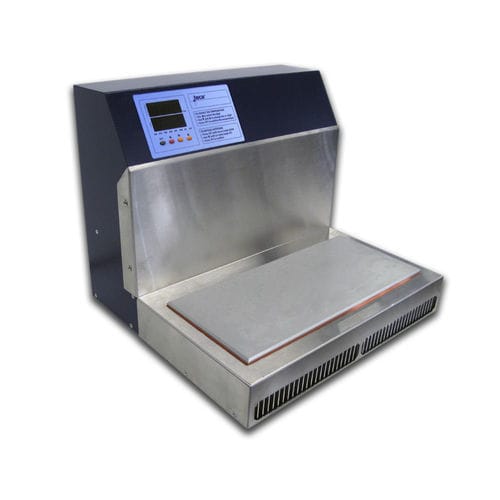

Aluminum cold plate ERGO-900

for laboratoriescustom

Ideal for histology labs or anywhere a quiet, low-profile cold surface is needed. At just over 2.5 inches high it is scaled down for use at individual microtome stations. The ERGO-900 is built with Peltier technology, which is known for its longevity and low maintenance needs. Competing readily with other embedding center cold plates, TECA’s ERGO-900 can uniquely be used either with existing paraffin dispensing centers or with individual sectioning stations. TECA’s Model ERGO-900 is a reliable, virtually maintenance-free Peltier plate which uses a quiet fan and a design optimized for robust performance. Features: • Cools and heats (-25 °C to 50 °C) • Precision machined anodized aluminum cold plate surface • Stainless steel threaded inserts available (standard & custom patterns) • Easy to clean stainless steel apron • Integral PWM temperature controller • 100-240 VAC universal input • Ergonomic low-profile design • Low noise and low vibrations • Weighs less than 30 lbs. (13.6 kg) • Operating ambient temperature range of 0 °C to 50 °C • Compact bench top footprint • Virtually maintenance-free operation • Painted Enameled stainless steel exterior housing • Conforms to UL 61010-1 & 61010-2-010 • Certified to CSA STDS C22.2 # 61010-1 & 61010-2-010 • FCC 47CFR PT 15: 2019; IEC 61326-1
