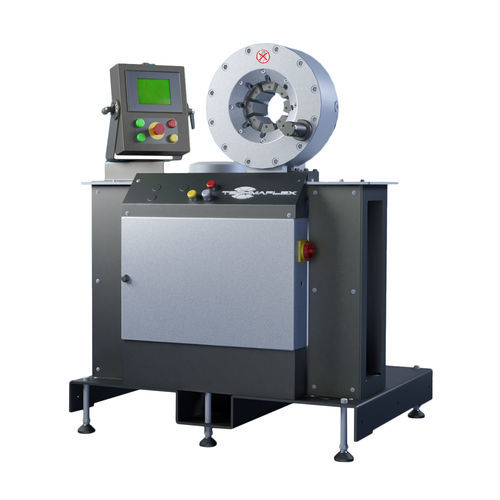

Hose crimping machine AUTOCRIMP 158 PRO Hhydraulic hoseconnectornut
Add to favorites
Compare this product
Characteristics
- Product handled
- for hoses, hydraulic hose, connector, nut, for elbow fittings, for composite insulators, for shock absorber, for metal tubes
- Operational mode
- semi-automatic
- Drive type
- electro-hydraulic
- Other characteristics
- compact, for automotive applications
- Crimping force
1,700 kN
- Crimping capacity
Max.: 110 mm
(4.3 in)Min.: 4 mm
(0.2 in)- Power
5.5 kW
(7.48 hp)
Description
Benefits :
- Accuracy
- High Cpk / Cmk performances
- Computer with pressure control
- Foot pedal included
- Silent pump
- Radial movement
- Precise positioning of the tools
- Rapid change of tools
Technical features :
- Crimp range: 4 to 110 mm
- Theorical crimp force: 170 t
- Complete opening: 156 mm
- Max. crimping stroke: Die diameter + 28 mm
- Master-die length: 125 mm
- Diameter with closed master-dies: 130 mm
- Motor: 5,5 kW
- Pump flow: 16L/min
- Cycle time: 9s
- Working pressure max.: 250 bar
- Volume ratio of chambers: 9
- Noise level: 65 dba
