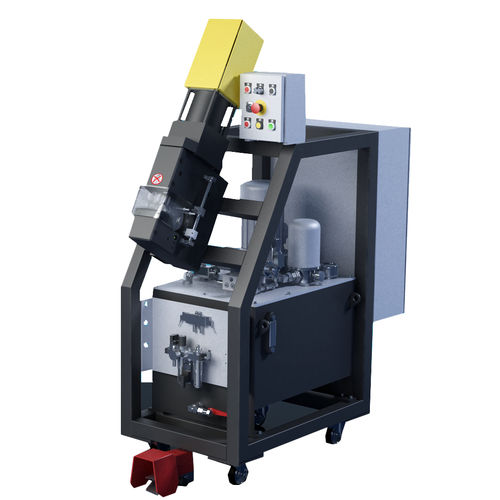

Cable crimping machine AUTOCRIMP 8.25 PROfor wiresfor hoseshydraulic hose
Add to favorites
Compare this product
Characteristics
- Product handled
- cable, for wires, for hoses, hydraulic hose, connector, nut, for elbow fittings, for composite insulators, for shock absorber, for metal tubes
- Operational mode
- semi-automatic
- Drive type
- electro-hydraulic
- Other characteristics
- compact, for automotive applications
- Crimping force
200 kN
- Crimping capacity
Max.: 40 mm
(1.6 in)Min.: 4 mm
(0.2 in)- Power
3 kW
(4.08 hp)
Description
Benefits :
- Ideal for composite (rubber hose and tube) assemblies
- High Cpk / Cmk performances
- Slim design (120 mm)
- Designed for intensive OEM production
- Possibility to order head only for integration into fully automated production line
Technical features :
- Crimp range: 4 to 40 mm
- Theorical crimp force: 20 t
- Complete opening: 55 mm
- Max. crimping stroke: 10 mm
- Master-die length: 50 mm
- Diameter with closed master-dies: 50 mm
- Motor: 3kW
- Pump flow: 30L/min
- Cycle time: 3,6s
- Working pressure max.: 160 bar
- Volume ratio of chambers: 2
- Noise level: 65 dba
VIDEO
Catalogs
AUTOCRIMP 8.25 PRO
1 Pages
