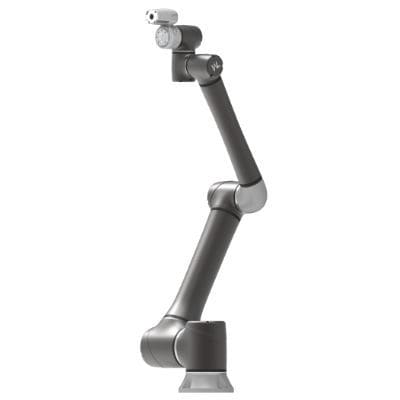

Articulated robot TM20
6-axispackagingpick-and-place

articulated robot
articulated robot
Add to favorites
Compare this product


Characteristics

Type
articulated
Number of axes
6-axis
Function
packaging, pick-and-place, palletizing, machine tending
Protection level
IP54
Payload

20 kg
(44.092 lb)

Reach

1,300 mm
(51.18 in)

Repeatability

0.1 mm
(0.0039 in)

Speed

1.1 m/s, 4 m/s
(3.6 ft/s, 13.1 ft/s)

Operating temperature

Max.: 50 °C
(122 °F)

Min.: 0 °C
(32 °F)

Weight

32.8 kg
(72.3 lb)

Description

The TM20 has a higher payload capability in our AI robot series. enables the further scaling of robotic automation and throughput increases for more demanding, heavier-duty applications with ease. It is specifically designed for massive pick-and-place tasks, heavy machine tending, and high-volume packaging and palletizing. TM20 is suitable for a wide range of applications in almost all industries. Future-proof Your Cobot with AI Benefits of AI Vision Automated optical inspection (AOI) Quality assurance & consistency Increase production efficiency Reduce operating costs AI-powered cobots recognize the presence and orientation of their environment and parts to perform visual inspections and dynamic pick-and-place tasks. Effortlessly apply AI to the production line and increase productivity, decrease costs, and shorten cycle times. AI vision can also read results from machines or test equipment and make appropriate decisions accordingly. Besides improving automation processes, an AI-driven cobot can track, analyze, and integrate data during production to prevent defects and improve product quality. Easily enhance your factory automation with a complete set of AI technology.
