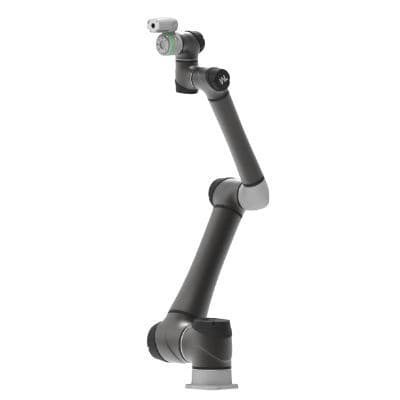

Articulated robot TM12S
6-axishandlingpackaging

Articulated robot - TM12S - Techman Robot Inc. - 6-axis / handling / packaging
Articulated robot - TM12S - Techman Robot Inc. - 6-axis / handling / packaging
Add to favorites
Compare this product


Characteristics

Type
articulated
Number of axes
6-axis
Function
handling, packaging, pick-and-place, palletizing, machine tending, deburring
Protection level
IP54
Other characteristics
safety
Payload

12 kg
(26.455 lb)

Reach

1,300 mm
(51.18 in)

Repeatability

0.03 mm
(0.0012 in)

Speed

4 m/s
(13.1 ft/s)

Operating temperature

Max.: 50 °C
(122 °F)

Min.: 0 °C
(32 °F)

Weight

33.3 kg
(73.4 lb)

Description

TM12S is a medium payload cobot from TM AI Cobot S series. Enhanced your production efficiency and reduce the cycle time of your production line. It finds wide applications in various tasks such as conveyor tracking, machine tending, welding, packaging, palletizing, PCB handling, polishing & deburring and more. Upgrade to a New Level of Possibilities Faster More Precise Flexible More Safety Items Intelligence Amplified, Customization Redefined AI Vision TMflow 2 TMcraft FASTER 25% faster cycle time! • The joint speed of the 6th axis is increased from 225 °/s to 450 °/s • Reduces the cycle time of your production line by 25%* for improved efficiency MORE PRECISE Best cobot repeatability of ±0.03 mm! • Delivers up to a 70%* increase in repeatability accuracy of ±0.03 mm *In comparison with the previous version FLEXIBLE Brand New Robot Stick The enhanced Robot Stick with a 3-position Enabling Switch and RESET button for easier and safer operation. Use it alone to control the robot with monitor, keyboard and mouse. Attachable TM Screen Experience versatility in teaching, debugging, and control by combining the Robot Stick with an optional TM Screen. Seamlessly tackle on-site debugging and unlock a wide range of capabilities with this powerful combination.
